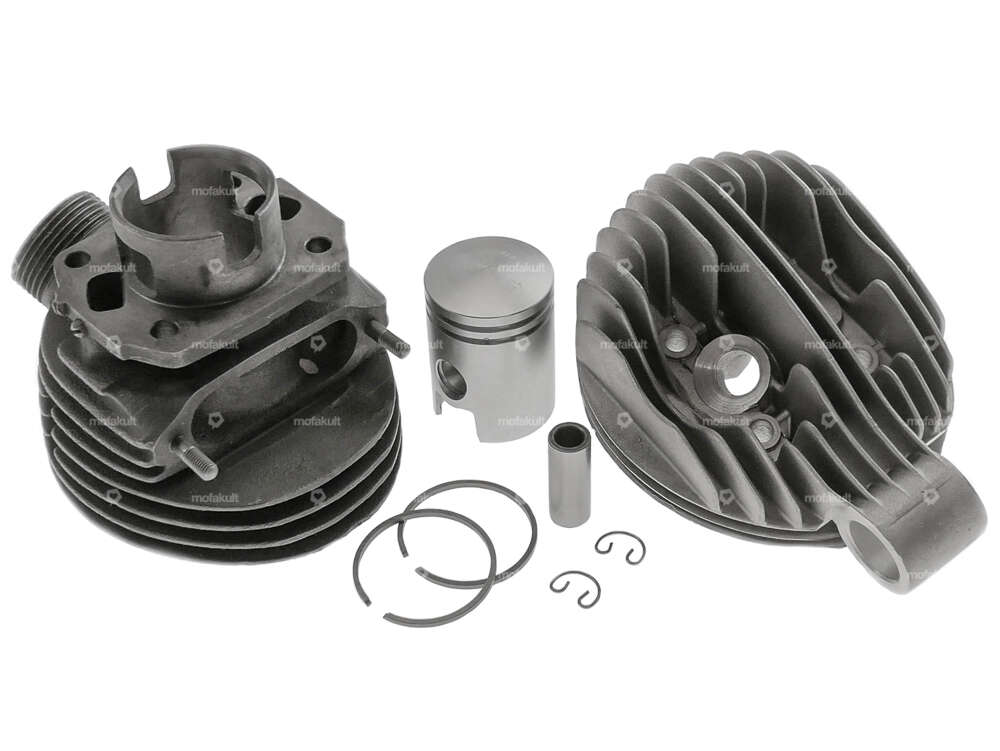

Complete cylinder kit for Sachs 50-AML automatic mopeds (Saxonette).
Cylinder and cylinder head are from 40-year-old stock. The piston is from the Meteor brand.
Execution with two warts.
The piston fins have a larger outer diameter than the conventional Swiss cylinders.
(Outer diameter of fins: 110 mm)
For 28 mm flame tubes with an M35x2 mounting nut.
In order to be able to mount the cylinder on a Sachs 50/2 CH engine with blower cooling, adaptation work must be carried out.
Original Sachs spare part number: A2781 / 0287 100 015 / 0286 238 100
The set includes the following fixed parts:
Manufacturer: Meteor · Nominal diameter: 38 mm · Ø outside piston (A): 37.95 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3 mm · Total piston height (E): 53 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Piston ring height: 2 mm · Thick piston ring: 1.6 mm · Pony spare part no.: A2772, A4358 · Sachs spare part no.: 0286 377 010, 0286 378 005 · Weight: 79 g
Hole pattern [mm]: 51 x 40 mm / 37 x 37 mm · Inlet window: 56 x 18 · Manufacturer: Sachs · Material: Gray cast iron · Surface: raw · Displacement: 50 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 41 mm · Ø cylinder neck: 43.8 mm · Ø outlet inside: 26.3 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 67 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Decompressor: No · Area of application: Original
Manufacturer: Sachs · Ø outside: 105 mm · Area of application: Original · Pony spare part no.: A1064 · Alternative version of Sachs spare part no.: 0213 033 003 · Sachs spare part no.: 0213 121 105
Details
| Nominal diameter | 38 mm |
| Manufacturer | Sachs |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Crankshaft stroke | 42 mm |
| Ø piston pin (B) | 12 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Hole spacing inlet | 67 mm |
| Outlet type | Union nut |
| Thread outlet | M35x2 (standard thread) |
| Hole pattern [mm] | 51 x 40 |
| Number of fixing points | 4 pcs |
| Area of application | Original |
Suitable for the following models
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 50/3 50/4 - MLFB (2.6 PS) |
