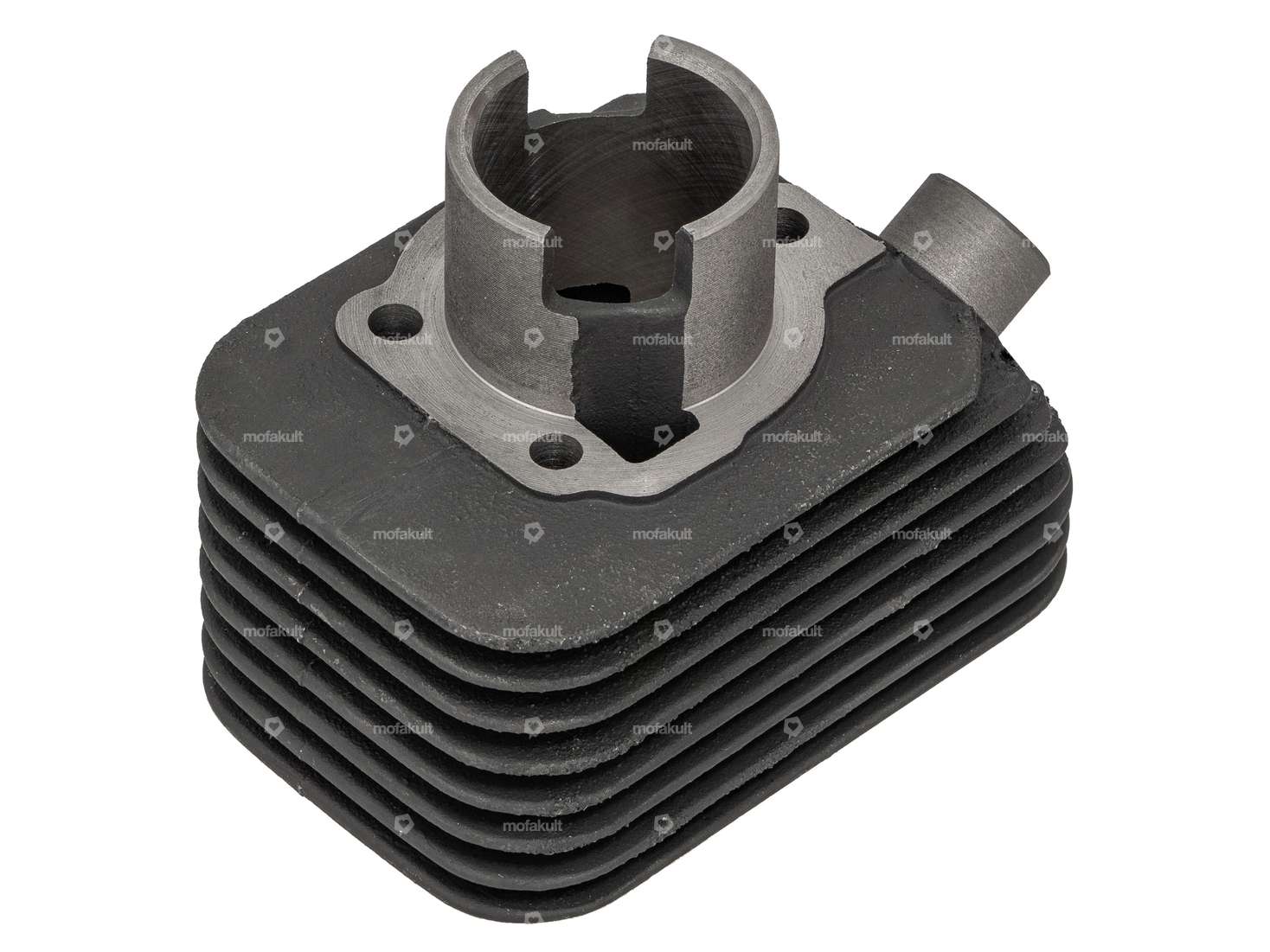

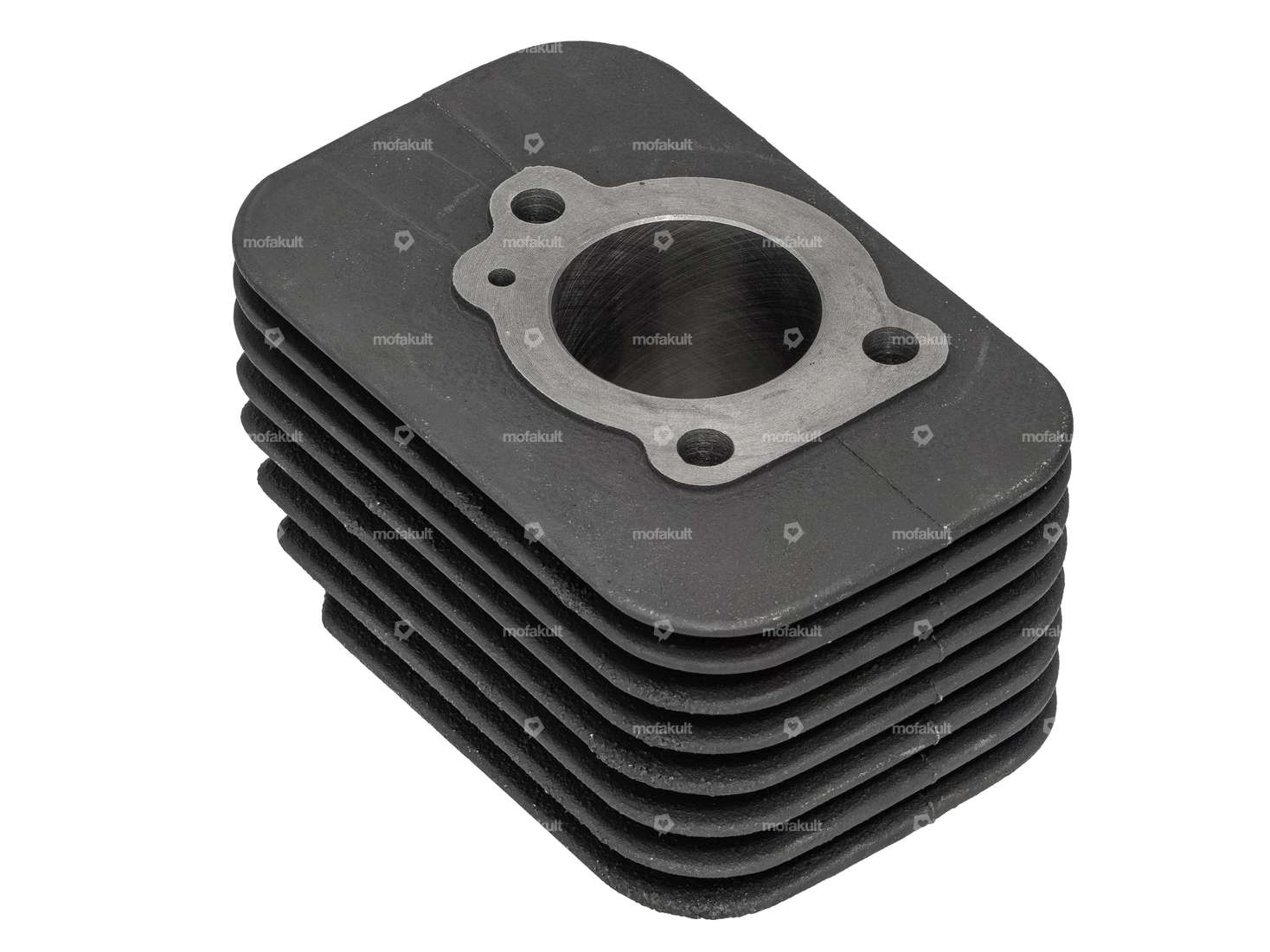

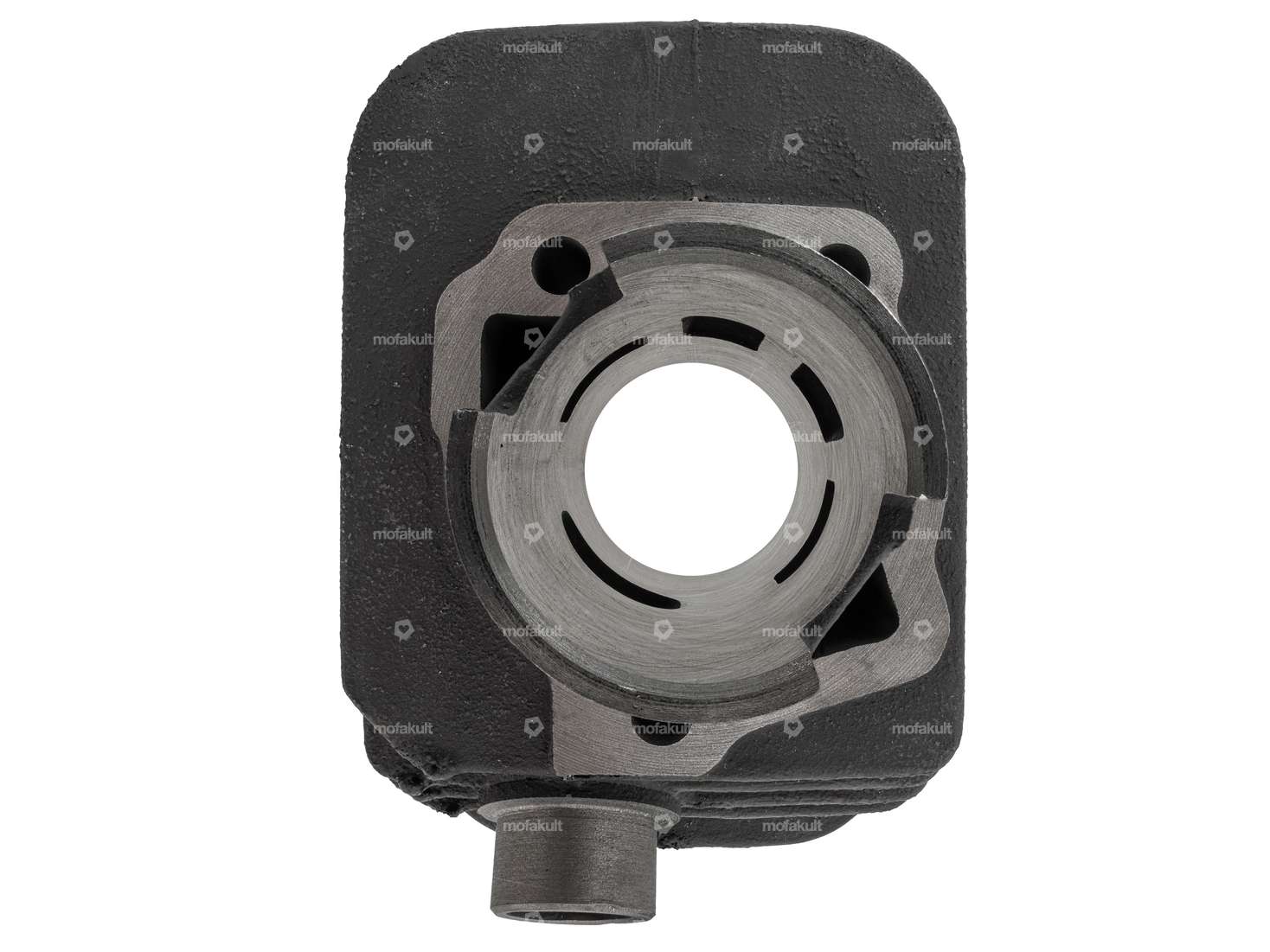

38.4 mm Italian original cylinder for your Piaggio Ciao, Si moped / moped with catalytic converter. The cast iron cylinder with 10 mm piston pin (axe 10) is supplied complete with cylinder and piston kit.
This cylinder can be installed as a camouflaged, lightweight tuning cylinder on Swiss mopeds.
Ø outer exhaust flange: 22.5 mm
Ø cylinder bore: 38.4 mm
Ø piston pin: 10 mm

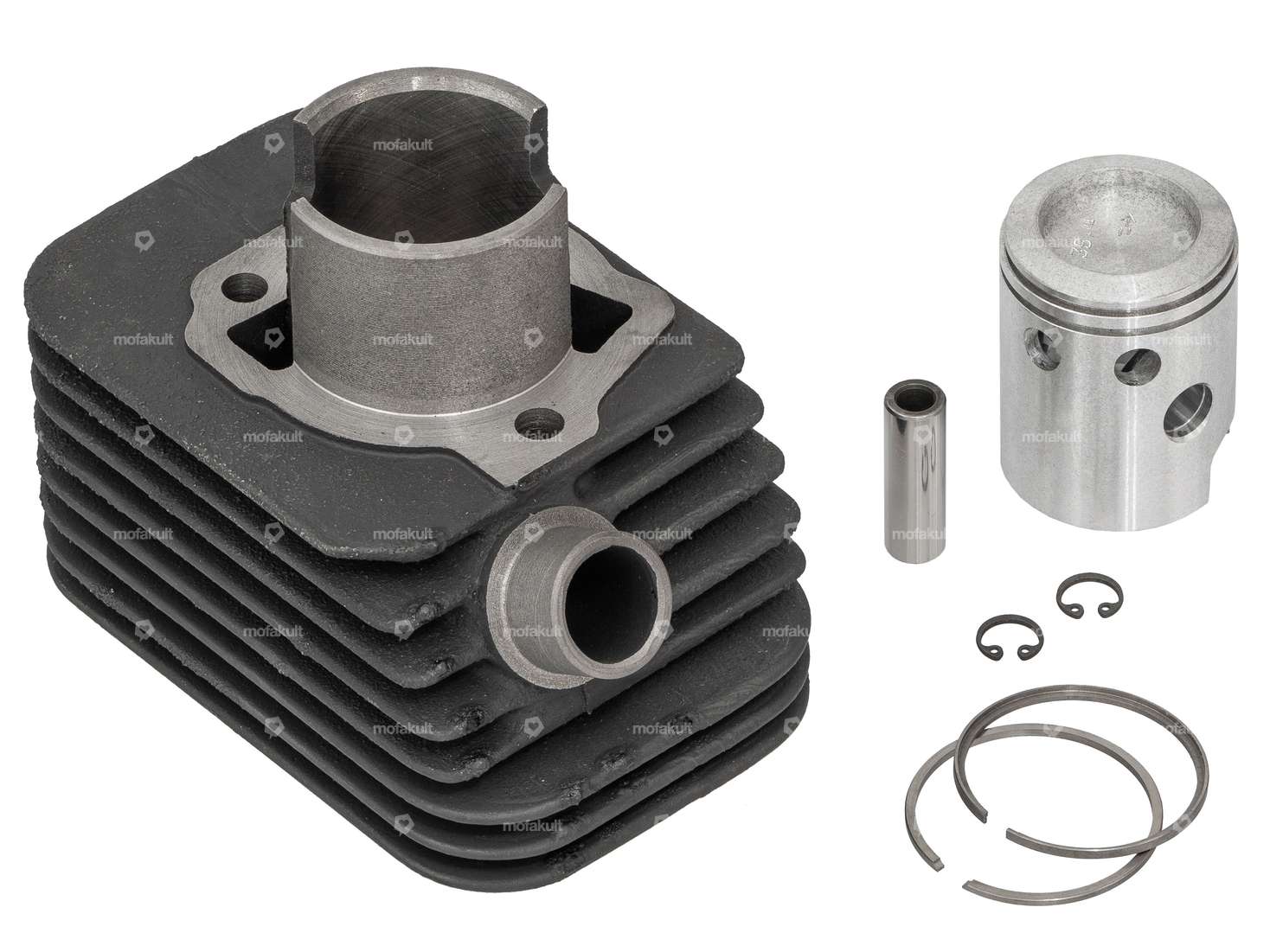

Scope of delivery according to figure 1.
Corresponding add-on parts such as gaskets, cylinder head, spark plug etc. can be found under accessories.
Original Piaggio spare part. NOS – New from old stock.
Original Piaggio spare part number: 249711
Details
| Nominal diameter | 38.4 mm |
| Manufacturer | Piaggio |
| Material | Gray cast iron |
| Surface | sandblasted |
| Displacement | 50 ccm |
| Area of application | Original |
| Crankshaft stroke | 43 mm |
| Ø cylinder neck | 45.8 mm |
| Ø Outlet outside | 22.3 mm |
| Ø outlet inside | 16.5 mm |
| Number of fixing points | 3 pcs |
| Ø piston pin (B) | 10 mm |
| Outlet type | clamped |
| Hole pattern [mm] | 35 x 55 |
| Decompressor | Yes |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao Si |
